BATTERY CHARGER:
HTRC C150 Lipo Charger 150W 10A AC/DC RC Battery Smart for LiPo LiHV LiFe Lilon NiCd NiMh Pb battery discharger Balance Charger
Qty: 1

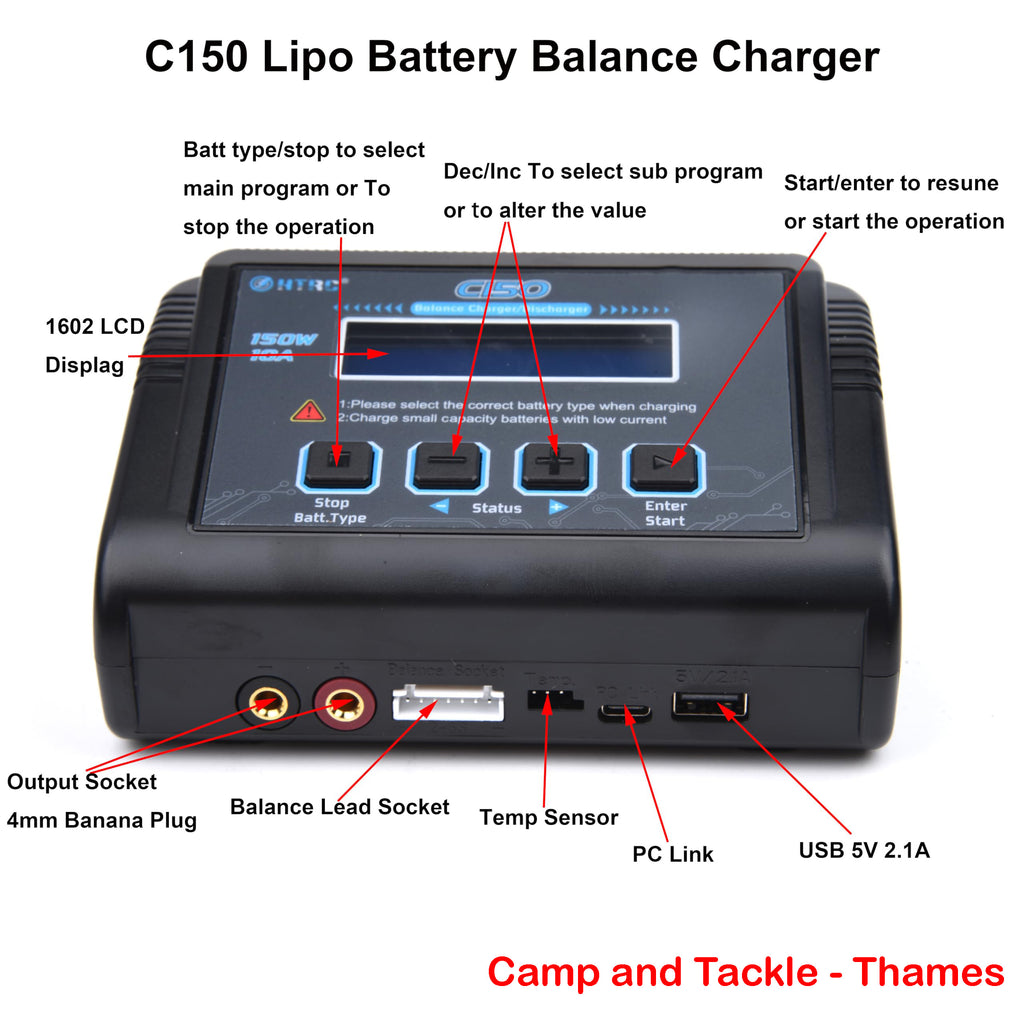

C150 is a new design multi-functional high power balance charger by HTRC,economic price,high quality.Utilizing 2x16 LED display,built-in cooling fan,DC 11-18V or AC 100-240V dual power.Max charger power 150w,Max charge current 10A.Designed for charging LiPo LiFe Lilon LiHV NiCd NiMh Pb Smart Batteries.
Besides it has a 5V 2.1A USB DC output port, which can be a power supply to other electronic products.
Features:
*Compact charger, easy to carry, easy to use.
*Practical for variety of batteries.
*Automatic identification of Li-Po batteries cells counts.
*Built in cool fan for easy heat dissipation.
*Multiple charging modes.
-Lipo/Lilo/LiFe/LiHv: balance charge, charge,fast charge, storage, discharge.
-NiMH/NiCd: Charge, Discharge, Cycle.
-PB: Charge,Discharge,Trickle.
*Multi-extra function:-Battery Meter:Display lithium battery cell counts, total voltage, battery capacity percentage,each cell's voltage. (does not support 1s battery)
-TVC(Terminal voltage control):The Charger allows user to set the charge/discharge end voltage.
-Lithium Battery internal Resistance Check: can display each cell's resistance.(does not support 1s battery)
-Balancer: individual-cell-voltage balancing,cell voltage Monitoring
-Smart battery:Smart battery I,II,III,and Digital DC Power.(Need optional DJI Charging cable)
*5V 2.1A USB port.
*Data storage and loading
*Battery break in and cycling.
*Maximum Safety:Automatic charge current limit,Delta-peak sensitivity, capacity limit, processing time limit,temperature threshold.
*Built-In PFC
*Firmware update.
Specification:
Input: AC 100-240V / DC 11-18V
Charge power:Max 150W
Discharge power:10W
Charge current range:0.1-10A
Discharge current range:0.1-2A
Lilon/LiPo/LiFe/LiHV cell count :1-6cells
NiCd/NiMH battery cell count:1-15cells
PB Battery voltage:2-20V
Smart battery:I/II/III
Current drain for balancing: 500mA/cell
Dimension:145*105*64mm
Weight: About 0.85kg
